Description

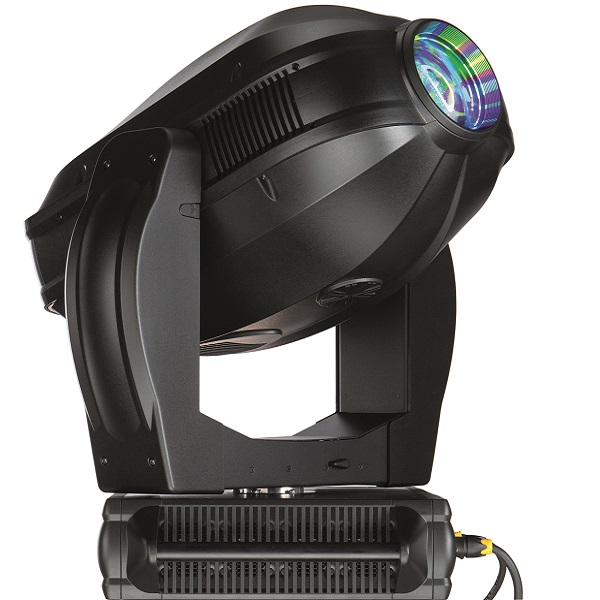

The VL4000 Spot offers all the tools needed to create dynamic and useful lighting on any stage.
Every aspect of the light fixture has been designed with performance in mind. The VL4000 Spot has 33,000 lumens and features a quiet Studio mode emitting 25,000 lumens.
Its high-resolution optics ensure remarkable centre-to-edge focusing and an unprecedented contrast ratio. Its 5:1 Zoom covers an amazing 9 – 47 degrees without sacrificing output or clarity.
COMMERCIAL INFORMATION
- 33,000 lumen output
- 2 wheels with 7 rotating gobos
- 2 fixed wheels with 5 colours
- Colour Temperature Correction System
- CMY colour mixing system
- 2x Animation wheels
- Optical system 12 elements 5:1 (9° – 47°)
- Motorised spot blade system
- Rotating 3-facet prism with convergence control
TECHNICAL INFORMATION
| Type of light | Spot |
| Light output | 33,000 lumens (25,000 lumens in Studio mode) |
| Optical degrees | 9° – 47° |
| Lamp power | 9° – 47° |
| Type of lamp | Philips MSR Gold FastFit (operating range of 800 – 1.400W)operates at 1,400W in Standard mode and 1,200W in Studio mode. |
| Lamp colour temperature | 6,000 ºK |
| Number of DMX channels | 57/51 |
| Number of gobos | 14 |
| Type of gobo | External diameter: 37.5mm +0/-0.3mm
Maximum image diameter: 29.5mm |
| Gobo Images |
Animation Wheels:
|
| Colour mixing | CMY |
| Colour wheel |          |
| Degree of movement | PAN/TILT: 540° / 270° |
| Weight | 37.7Kg (+3Kg clamps) |
| Complete Flight Case | 155 x 76 x 59 (approx. 140Kg) – 2 units
780 x 76 x 59 (approx. 90Kg) – 1 unit |
