Description

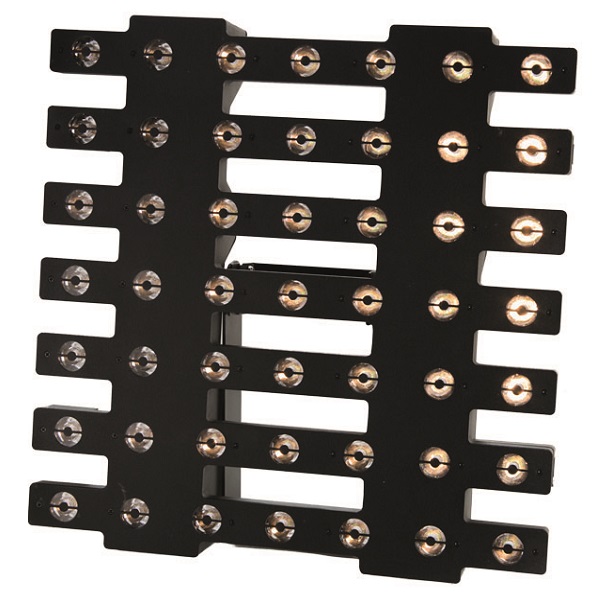

The Goldpix 77 is a panel with a matrix of 7×7 CREE 3W white (2700ºK) LEDs. It can be used as a low-resolution monochrome LED display with modules assembled together or as a light source, thanks to its light output (2,722 lux at 10m).
COMMERCIAL INFORMATION
- PowerCon input and output connector
- DMX-controlled, via XLR connection or Ethernet directly.
- Internal Ethernet switch, allows daisy-chaining of multiple units.
- It does not need an internal power supply or any other accessories to operate.
- Usable from media-server, pixel-mapping or directly from DMX platform.
INFORMACIÓN TÉCNICA
| Type of light | LED Matrix |
| Light output | 3.200 lumens |
| Optical degrees | 49 x 7° |
| Number of LEDs | 49 LEDs |
| Number of DMX channels | 5 / 49 / 54 |
| LED colour | White 2.700 ºK |
| Power and consumption | 230V, 50Hz: 173W |
| Weight | 7,5 Kg (+0,5 Kg clamp) |
| Complete Flight Case | 99 x 80 x 60 (103Kg) – 6 units |
