Description

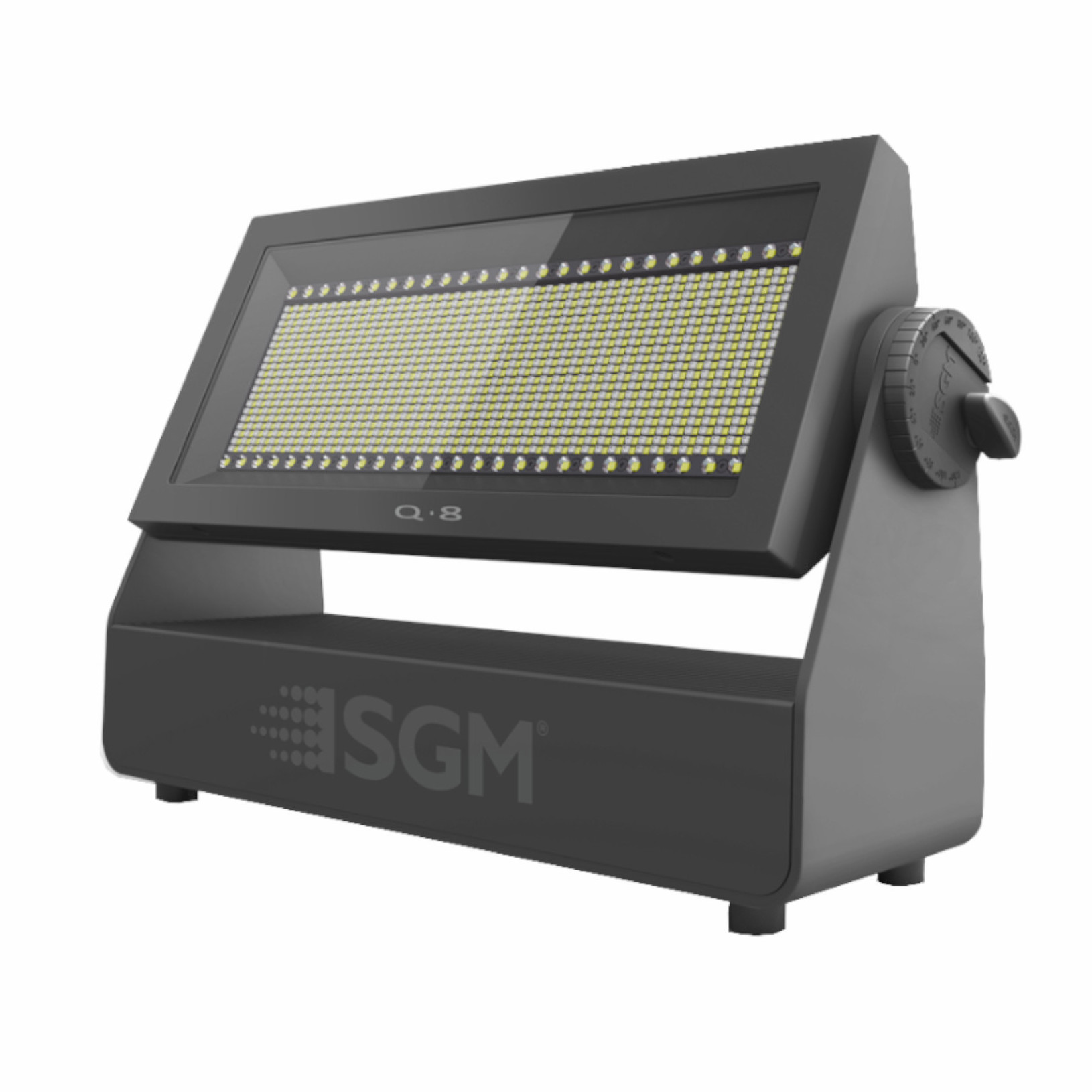

The SGM Q-8 is a DualSource™ spotlight manufactured to the highest quality standards.
This IP66 spotlight combines a 52,675 lumen strobe and 51,771 lumen studio quality colour wash light.
The Q-8 can deliver up to 47,232 lumens at 5,500 K with excellent colour rendering (CRI 96).
COMMERCIAL INFORMATION
- Panel with 880 RGB LEDs and 880 white LEDs and a colour temperature of 5,700ºK
- Strobe with 52 high-power LEDs and a colour temperature of 7,000° K
- Adjustable colour temperature between 2,000 and 10,000ºK
- Integrated dehumidifier and ePTFE membrane
- Adjustable LED frequency between 1Khz and 30Khz.
- LumenRadio Wireless DMX and RDM (CRMX™, W-DMX™ G2-G4S)
- Supplied with 8-way panels
TECHNICAL INFORMATION
| Type of light | Wash and strobo | |
| Light output | 53.849 lumen | |
| Optical degrees | 108 / 75,2 | |
| Number of LEDs | 880 white, 880 RGB and 52 white strobe | |
| Number of DMX channels | 6, 10, 12 x 2, 27, 34, 36, 41 or 52. Wireless DMX | |
| DMX connector | 5-pin XLR, input and output | |
| Colour mixing | RGBW | |
| Maximum consumption | 630W | |
| Power connector | powerCON TRUE1, input and output | |
| IP | IP66 | |
| Weight | 13,5Kg (+1Kg clamps) | |
| Dimensions | 520 x 320 x 166 mm | |
| Complete Flight Case | 990 x 590 x 890 mm – 4 units | |
| Complete Flight Case Weight | 130Kg. |
