Martin MAC Viper AirFX

Category:

Description

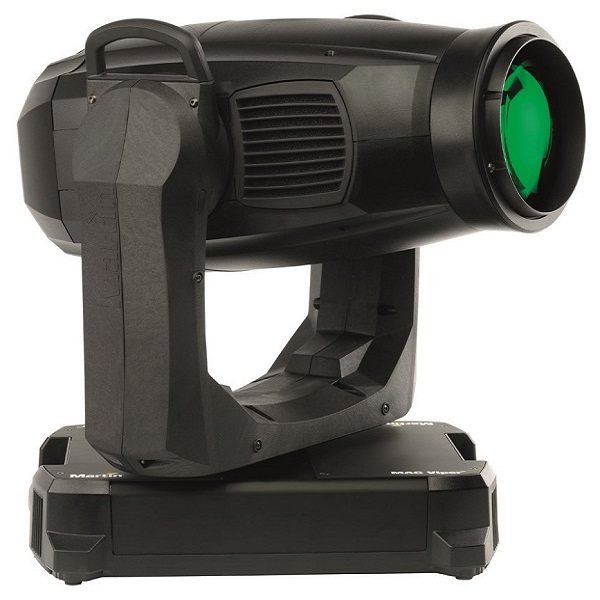

The MAC Viper AirFX is a new concept that combines a defined beam, aerial effects and a beautiful wash light into one. It has a new collection of gobos, impressive aerial effects with its zoom range 11 – 59°. Capable of converting its light into a wash at any point, it can offer the performance of a spot and the light power of a wash.

It shares the compact size, impressive speed, superior light quality and beautiful colours of the Martin MAC Viper Profile and uses the same 1,000W lamp, which in this case surpasses today’s larger and heavier 1,500W appliances.

COMMERCIAL INFORMATION

• 34,500 lumens – Excellent light quality and a flat and uniform projection
• 1:5 zoom – 11 – 59° continuous zoom with linked focus
• 160mm PC front lens for a thick beam of light
• Frost – Instant or gradual for a beautiful wash effect
• 5-position rotary gobo wheel• CMY – Vibrant color mix with a great color palette included: true reds, amber colors, primary greens and deep blues…
• 7-position fixed gobo wheel – with colors
• Linear CTO – Color Temperature Control (CCT) of tungsten lamp in daylight and CMY palette expansion
• Dimmer and shutter – Combined dimmer/shutter system with effects
• Iris – fast and accurate with adjustable dynamic effects
• Strobe – Has various strobe effects through the use of mechanical or electronic control or the combination of both



TECHNICAL INFORMATION

Light type Spot / PC
Light output 34.500 lumens
Optical grades 11° – 59°
Lamp power 1.000W
Lamp type Osram HTI 1.000 / PS Lok-it
Lamp color temperature 6.000 ºK
Number of DMX channels 20 / 28
Number of gobos 12
Type of gobo E27 (Size E, max. image diameter 27mm)
Images of gobos



Fixed Gobo Wheel

Color mixing CMY
Colors

Color 1 - Blue 101  Color 2 - Green 203  Color 3 - Minus Green  Color 4 - Orange 311  Color 5 - Magenta 522  Color 6 - Congo  Color 7 - Red 310

Degree of movement PAN/TILT: 540° / 268°
Potencia y consumo 240V / 50Hz: 1.194W / 5,0A / PF 0,993
Weight 35,7Kg (+1,5Kg claws)
Full Flight Case  123 x 60 x 100 (145Kg) – 2 units
